Markforged FFF Printer Comparison

Markforged FFF Printer Comparison

Onyx Pro

markforged onyx pro 3d printer

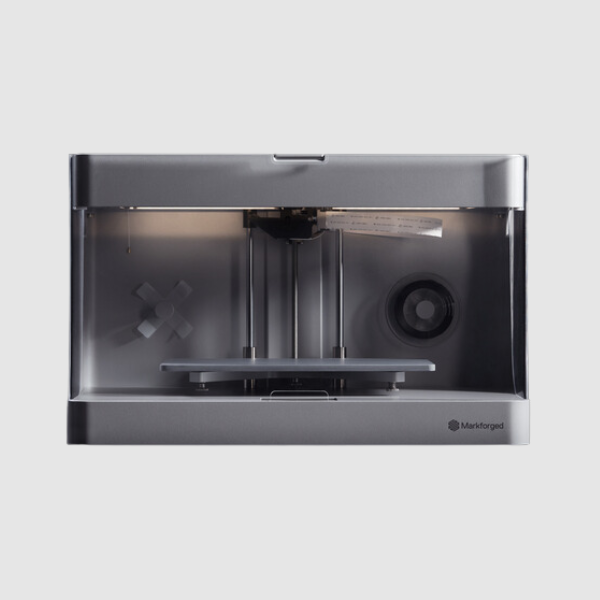

Mark Two

markforged mark two 3d printer

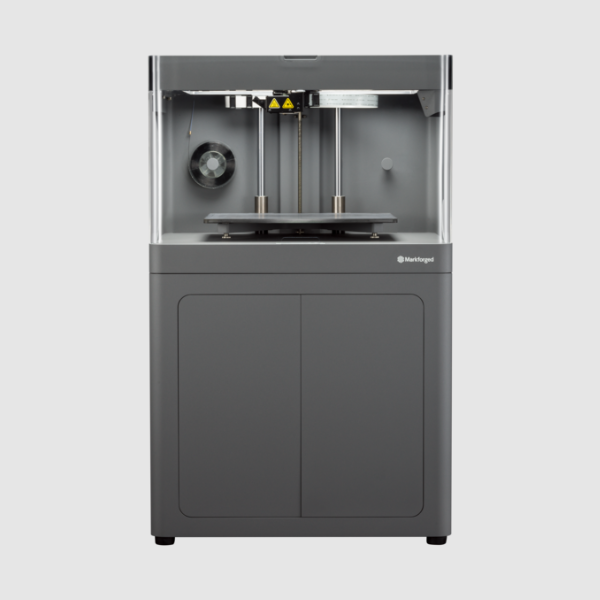

X7

markforged x7 industrial 3d printer

FX10

markforged fx10 3d printer

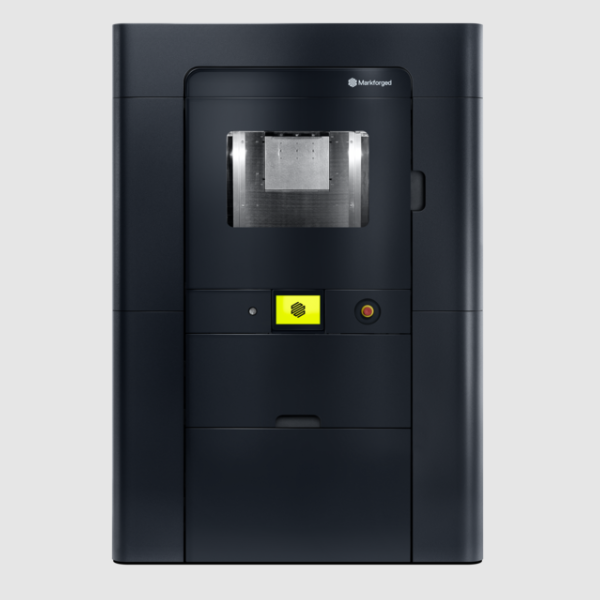

FX20

FX20

Hardware

Build Volume:

320 x 132 x 154mm (6.5L)

320 x 132 x 154mm (6.5L)

330 x 270 x 200mm (17.8L)

375 x 300 x 300mm (33.8L)

525 x 400 x 400mm (84L)

Print Bed:

Flat to within 160 μm; Kinematic coupling and Manual shim levelling

Flat to within 160 μm; Kinematic coupling and Manual shim levelling

Flat to within 80 μm; Kinematic coupling, Manual laser-assisted levelling

Heated, Precision-ground aluminium vacuum bed, Auto levelling

Precision ground aluminium vacuum bed, Auto levelling

Z Resolution Range:

100-200 μm

100-200 μm

50-250 μm

125-250 μm

50-250 μm

Build Chamber:

Not Heated

Not Heated

Not Heated

Heated up to 60°C

Heated up to 200°C

Material Storage:

Outboard dry box, 800cc spool.

Outboard dry box, 800cc spool.

Inboard dry box, 800cc spool.

Humidity controlled material drawer, 4 spool bays, 800cc spools.

Humidity-controlled material drawer, 4 spool bays, 3200cc spools.

Supports:

Same material breakaway supports

Same material breakaway supports

Same material breakaway supports

Same material breakaway supports

Same material breakaway supports (Onyx)

Dedicated breakaway support (Ultem™ Filament and Vega)

Infill:

Closed-cell infill; Multiple geometries available

Closed-cell infill; Multiple geometries available

Closed-cell infill; Multiple geometries available

Closed-cell infill; Multiple geometries available

Closed-cell infill; Multiple geometries available

Specifications

Storage:

Cloud included, Offline available

Cloud included, Offline available

Cloud included, Offline available

Cloud included, Offline available



Cloud included, Offline available

Power:

100-240 VAC, 150W (2A Peak)

100-240 VAC, 150W (2A Peak)

100-240 VAC, 150W (2A Peak)

100-120 VAC, 12A or 200-240 VAC, 6A



200-240VAC 3P+E, 24A or 347-416VAC 3P+N+E, 14A; 8 kW

Weight:

16KG

16KG

48KG

109KG



530KG

Footprint:

584 x 330 x 355 mm

584 x 330 x 355 mm

584 x 483 x 914 mm

760 x 640 x 1200 mm



1352 x 900 x 1925 mm

Engineering Thermoplastics

Compatible:

Onyx, Precise PLA and Smooth TPU 95A

Onyx, Nylon, Precise PLA and Smooth TPU 95A

Onyx, Nylon, Onyx ESD, Precise PLA, Onyx FR and Smooth TPU 95A

Onyx

Onyx, ULTEM 9085 Filament, Onyx ESD, Vega and Onyx FR

Continuous Fibres

Compatible:

Continuous Fibreglass

Continuous Fibreglass, Continuous Carbon Fibre, Continuous HSHT Fibreglass and Continuous Aramid Fibre

Continuous Fibreglass, Continuous Carbon Fibre, Continuous Carbon Fibre FR, Continuous HSHT Fibreglass and Continuous Aramid Fibre

Continuous Carbon Fibre

Continuous Fibreglass, Continuous Carbon Fibre, Continuous Carbon Fibre FR, High Temperature Carbon Fibre and Continuous Aramid Fibre

Advanced Features

Detection:

Out of Plastic Detection and Fibre Jam Detection.

Out of Plastic Detection and Fibre Jam Detection.

Out of Plastic Detection, Fibre Jam Detection, Out of Fiber Detection and Adaptive Bed Levelling.

Out of Plastic Detection, Fibre Jam Detection, Out of Fibre Detection, Adaptive Bed Levelling and Automated Bed Levelling.

Out of Plastic Detection, Fibre Jam Detection, Out of Fibre Detection, Adaptive Bed Levelling, Automated Bed Levelling and Micron Precision Linear Encoders.



Max Speed:

1x

1x

2x

4x

4x



Inspection:

Not Compatible

Not Compatible

Compatible

Compatible

Not Compatible
