Formlabs Printer Comparison

View the full spec comparison guide for Formlabs 3D Printers

Formlabs Resin Printers Comparison

Form 3+/B+

formlabs Form 3 printer

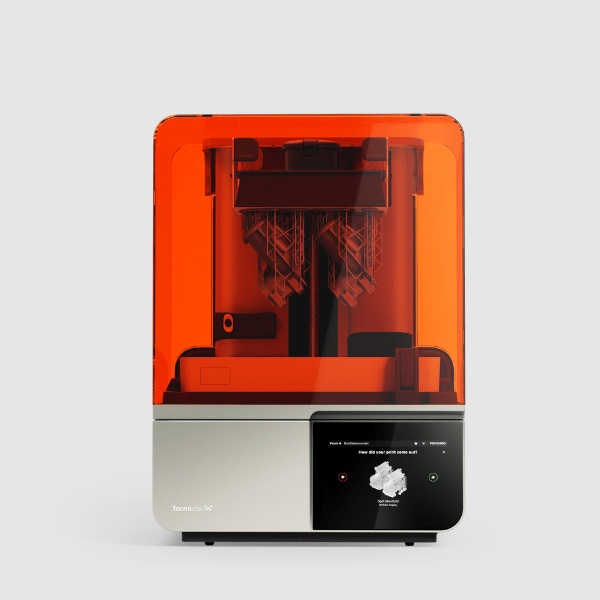

Form 4/B

Formlabs Form 4 printer image

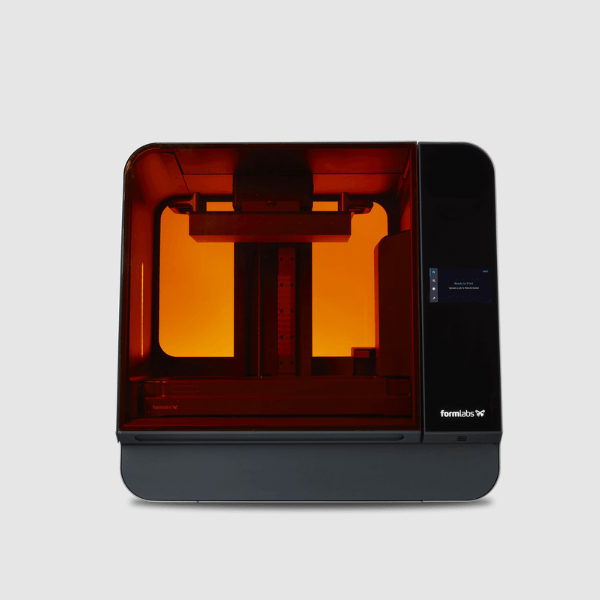

Form 3L/BL

Formlabs Form 3L/BL Printer image

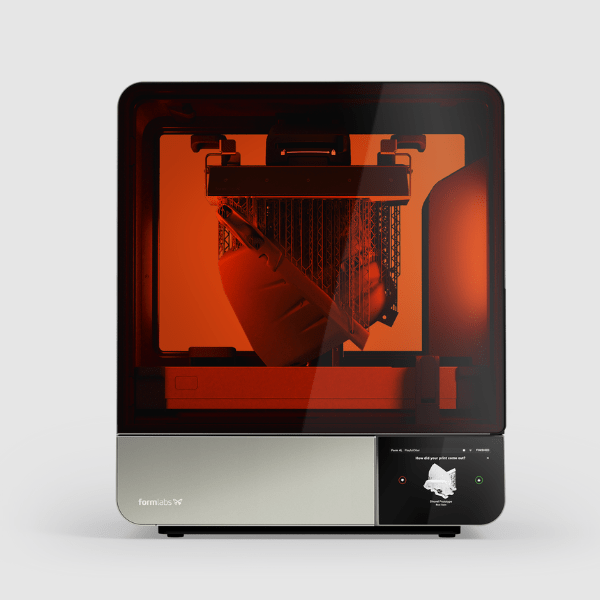

Form 4L/BL

Formlabs Form 4L Printer Image

Printer Hardware

Maximum Part Size:

14.5 x 14.5 x 18.5 cm

20.0 × 12.5 × 21.0 cm

33.5 × 20 × 32 cm

35.3 x 19.6 x 35.0 cm

Build Area:

210 cm²

250 cm²

670 cm²

692 cm²

Printer Dimensions:

40.5 × 37.5 × 53 cm

39.8 × 36.7 × 55.4 cm

77 × 52 × 74 cm

66.4 x 52.8 x 79.4 cm

Weight:

17.5 KG

18.3 KG

54.4 KG

58.5 KG

Printer Control:

5.5″ interactive touchscreen

7″ interactive touchscreen

5.5″ interactive touchscreen

7″ interactive touchscreen

Specifications

Technology:

Laser-Powered Stereolithography

Low Force Display

Laser-Powered Stereolithography

Low Force Display

Light Source:

1x 250 mW laser

Backlight Unit (60 LEDs)

2x 250 mW lasers

Backlight Unit (145 LEDs)

Layer Thickness:

25 – 300 microns

25 – 300 microns

25 – 300 microns

25 – 200 microns

XY Resolution:

25 microns

50 microns

25  microns

46 microns

Maximum Print Speed:

31 mm/hour

100 mm/hour

23 mm/hour

80 mm/hour

Average Print Speed:

11 mm/hour (0.4 in/hour) across all materials

40 mm/hour (1.6 in/hour) across all materials

8 mm/hour (0.3 in/hour) across all materials

24 mm/hour (0.9 in/hour) across all materials

Internal Temperature:

Auto-heats to 35 °C

Auto-heats resin to 25–45 °C depending on material

Auto-heats to 35 °C

Auto-heats resin to 25–45 °C depending on material

Material Info

Biocompatible Materials:

Only on the B models

Only on the B models

Only on the B models

Only on the B models

Material Choice:

27 Formlabs materials,  18 biocompatible on the B model

23 Formlabs materials, 15 biocompatible on the B model

23 Formlabs materials, 14 biocompatible on the B model

19 Formlabs materials, 12 biocompatible on the B model

Open Material Mode:

Yes, print with third-party resins

Yes, print with third-party resins

Yes, print with third-party resins

Yes, print with third-party resins

Resin Heating:

Air-heated print chamber

High speed conduction resin heating with infrared temperature sensing

Air-heated print chamber

High speed conduction resin heating with infrared temperature sensing

Resin Cartridge Type:

Original resin cartridge

Next-generation resin cartridge
5-10x faster filling
63% less waste
30% less shelf space

Original resin cartridge

Next-generation resin cartridge
5-10x faster filling
63% less waste
30% less shelf space

Consumables Cost:

Standard resins starting at £120 per litre

A resin tank costs £120

Standard resins starting at £79 per litre

A resin tank costs £79

Standard resins starting at £120 per litre

A resin tank costs £249

Standard resins starting at £79 per litre

A resin tank costs £209

Software

System Requirements:

Windows 7 and up Mac OSX 10.6.8 and up

Windows 7 and up Mac OS X 10.12 and up

Windows 7 and up Mac OSX 10.6.8 and up

Windows 7 and up  Mac OS X 10.12 and up

Software:

PreForm print preparation software, Dashboard printer management, Fleet Control fleet management

PreForm print preparation software, Dashboard printer management, Fleet Control fleet management

PreForm print preparation software, Dashboard printer management, Fleet Control fleet management

PreForm print preparation software, Dashboard printer management, Fleet Control fleet management

File Type:

STL, OBJ or 3MF

STL, OBJ or 3MF

STL, OBJ or 3MF

STL, OBJ or 3MF
