The Digital Forge - software + materials + 3D printers

Create strong, functional, production-ready parts on the Markforged additive manufacturing platform

Markforged was founded in Massachusetts in 2013. They continue to re-invent manufacturing with their innovative additive manufacturing technology – printers, materials and their Digital Forge Platform. The team at Additive-X have been working with Markforged since 2015 and can help you get the best out of their technology.

The FX20 is Markforged’s flagship 3D printer and their first capable of printing ULTEM™ 9085 using the same continuous fibre reinforcement that Markforged is known for. It can be used to fabricate high strength parts designed for some of the most demanding industries including Automotive, Aerospace, Oil and Gas.

With a Desktop Series (Mark Two, Onyx Pro, Onyx One), Industrial Series (FX20, X7, X5, X3) and an accessible Metal 3D Printer, Markforged lead the way with industrial-level reliability and consistency and a smart, scalable additive manufacturing platform designed to seamlessly fit into your operation.

Markforged Composite 3D printers really are “industrial-grade” with a proprietary base filament Onyx, made of micro carbon fibre filled nylon which you can reinforce with continuous strands of composite – Continuous Carbon Fibre, High-Temp Fibreglass, Fibreglass, Kevlar and more to create super-strong prototypes and end-use parts.
Print parts, tools and fixtures stronger than metal on the Composite printers, or actually print in metal via the Metal X system. The Metal X prints parts in powdered metal, bound by a plastic matrix enabling parts to have close-cell infill geometry and using a ceramic release layer. Prints are washed (in the Wash 1) and then sintered in a furnace (Sinter 1 or Sinter 2) to remove the plastic binding and ceramic supports so that you are left with a metal part. The Metal X system enables you to manufacture metal parts with geometries and details that would be impossible with subtractive manufacturing processes.
Whichever Markforged printer you choose, it is supplied with Cloud Eiger™ software which delivers a single user-experience, digital part repository and scalable fleet management across the entire range. Offline and enhanced subscription options are also available.

Using the X7’s integrated laser micrometer to scan whilst printing, Blacksmith measures and compares dimensional accuracy data of printed parts to their design files generating a point cloud for review in Eiger™ or for a printed report. Blacksmith gives manufacturers verified known good prints directly from the printbed.

With Multi-Factor authorisation and ISO27001 certification data security is paramount and every engineer and designer who innovates with a Markforged printer expects their data and part files to be secure and confidential.

Additive-X | Your Certified Markforged Partner

Want To Explore Markforged Solutions?

Arrange A Demo With One Of Our Markforged Experts At A Time That Suits You

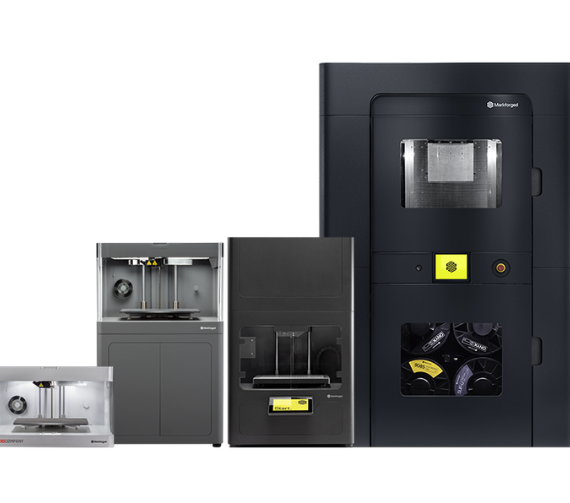

Markforged Printer Range

Markforged Metal X™

End-to-end metal 3D printing solution for next-day functional metal parts

Markforged FX20™

Large, fast industrial 3D printer for Continuous Fibre Reinforcement and printing in ULTEM™ Filament

Markforged X7™

Industrial carbon fibre and composite 3D printer

Markforged X5™

Industrial 3D printer with continuous fibreglass reinforcement

Markforged X3™

Industrial FFF 3D printer for high-strength parts

Markforged Mark Two™

Desktop Composite 3D Printer with Fibre-Reinforced Printing for strong parts

Markforged Onyx Pro™

Easy to use Desktop Continuous Fibre Reinforced 3D Printer

Markforged Onyx One™

Desktop FFF 3D Printer for printing in Onyx™ - nylon filament filled with micro carbon fibre

Markforged X7 Digital Forge Industrial Quality Solution

Markforged Bundle including X7 Industrial 3D Printer, Blacksmith, Materials, Success Plan & access to Markforged University

Markforged X7 Digital Forge Industrial Fleet Solution

Markforged Bundle includes X7 3D Printer + 2 x Mark Two Desktop Printers, Materials, Blacksmith, Success Plan + access to Markforged University

Markforged Metal X™

End-to-end metal 3D printing solution for next-day functional metal parts

Markforged FX20™

Large, fast industrial 3D printer for Continuous Fibre Reinforcement and printing in ULTEM™ Filament

Markforged X7™

Industrial carbon fibre and composite 3D printer

Markforged X5™

Industrial 3D printer with continuous fibreglass reinforcement

Markforged X3™

Industrial FFF 3D printer for high-strength parts

Markforged Mark Two™

Desktop Composite 3D Printer with Fibre-Reinforced Printing for strong parts

Markforged Onyx Pro™

Easy to use Desktop Continuous Fibre Reinforced 3D Printer

Markforged Onyx One™

Desktop FFF 3D Printer for printing in Onyx™ - nylon filament filled with micro carbon fibre

Markforged X7 Digital Forge Industrial Quality Solution

Markforged Bundle including X7 Industrial 3D Printer, Blacksmith, Materials, Success Plan & access to Markforged University

Markforged X7 Digital Forge Industrial Fleet Solution

Markforged Bundle includes X7 3D Printer + 2 x Mark Two Desktop Printers, Materials, Blacksmith, Success Plan + access to Markforged University

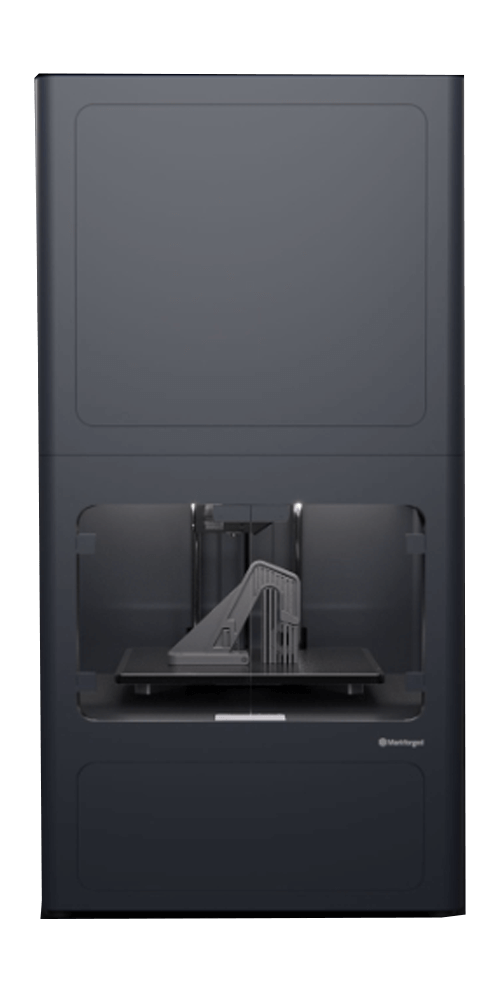

Markforged Metal X™

Markforged Metal X™ System is safe and easy to use for 3D Printing in a wide range of advanced metals from stainless steels to copper

Technology: Metal FFF
Build Volume: 300 x 220 x 180 mm
Minimum Layer Resolution: 50 μm and 125 μm (Post-Sinter)
Materials Available: 17-4 PH Stainless Steel, A2 and D2 Tool Steel, Inconel 625, Copper, H13 Tool Steel
Workflow: Design – Print – Wash – Sinter – Use
Cost Of Machine: Price on Request

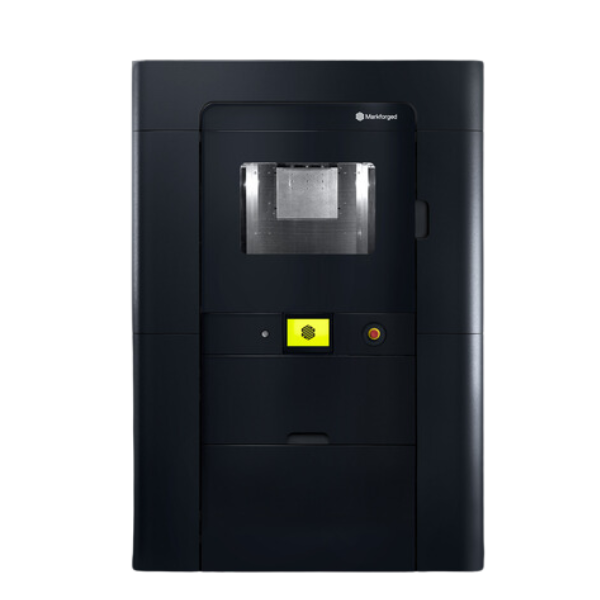

Markforged FX20™

Markforged large-format production-ready 3D Printer for faster printing, bigger parts and higher temp applications - it’s everything we love about Markforged, scaled-up!.

Technology: Continuous Fibre Reinforcement (CFR)
Build Volume: 525 x 400 x 400 mm
Minimum Layer Resolution: 50 μm – 250 μm
Materials Available: Onyx™, Onyx FR™, Onyx ESD™, ULTEM™ 9085 Filament, Nylon, Precise PLA, Carbon Fibre, Fibreglass, Aramid Fiber (Kevlar), HSHT Fibreglass
Workflow: Design – Reinforce – Print – Use
Cost Of Machine: Price on Request

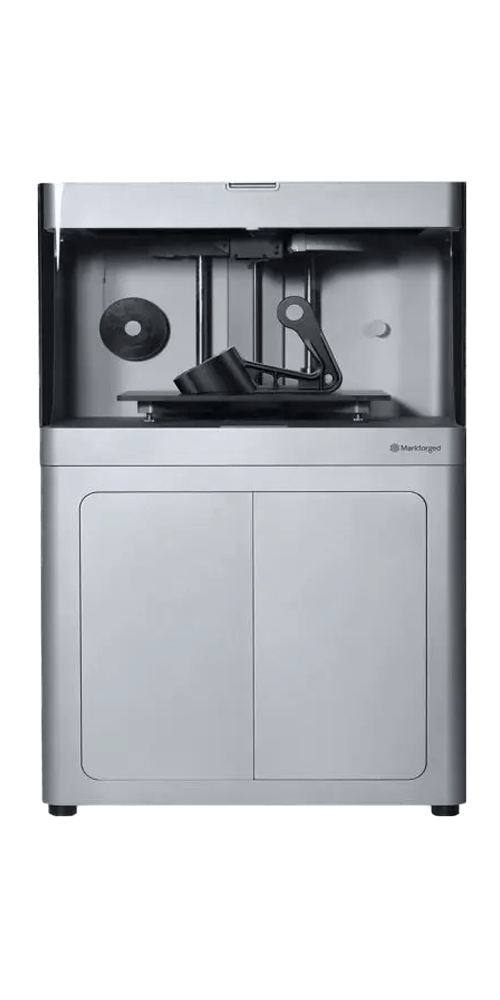

Markforged X7™

Markforged Industrial Carbon Fibre 3D Printer for same-day printing of reinforced parts as strong as machined aluminium

Technology: Continuous Fibre Reinforcement (CFR)
Build Volume: 330 x 270 x 200 mm
Z Layer Resolution: 50 μm – 250 μm
Materials Available: Onyx™, Onyx FR™, Onyx ESD™, Nylon, Precise PLA, Carbon Fibre, Fibreglass, Aramid Fiber (Kevlar), HSHT Fiberglass
Workflow: Design – Reinforce – Print – Use
Cost Of Machine: Price on Request

Markforged X5™

Markforged Industrial 3D Printer for Continuous Fibreglass reinforced parts

Technology: Continuous Fibre Reinforcement (CFR)
Build Volume: 330 x 270 x 200 mm
Z Layer Resolution: 50 μm – 200 μm
Materials Available: Onyx™, Fibreglass, Onyx FR™, Onyx ESD™, Nylon and Precise PLA
Workflow: Design – Print – Use
Cost Of Machine: Price on Request

Markforged X3™

Markforged Industrial FFF 3D Printer for high-quality, strong nylon parts filled with micro carbon fibre

Technology: FFF
Build Volume: 330 x 270 x 200 mm
Z Layer Resolution: 50 μm – 200 μm
Materials Available: Onyx™, Onyx ESD™, Onyx FR™, Nylon, Precise PLA
Workflow: Design – Print – Use
Cost Of Machine: Price on Request

Markforged Mark Two™

Markforged’s Desktop Carbon Fibre Composite 3D Printer

Technology: Continuous Fibre Reinforcement (CFR)
Build Volume: 320 x 132 x 154 mm
Z Layer Resolution: 100 μm – 200 μm
Materials Available: Onyx™, Precise PLA, Carbon Fibre, Fibreglass, Aramid Fibre (Kevlar), HSHT Fibreglass, Nylon
Workflow: Design – Reinforce – Print – Use
Cost Of Machine: Price on Request

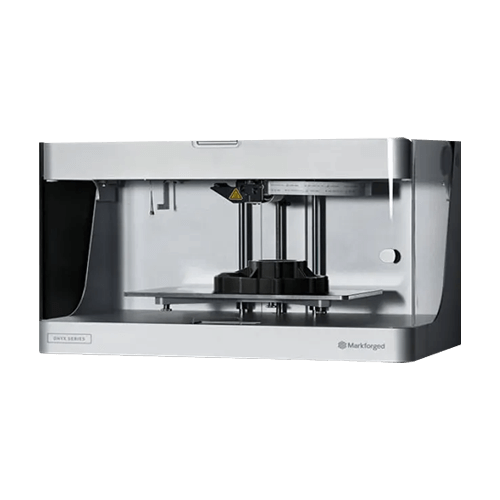

Markforged Onyx Pro™

Markforged Desktop Continuous Fibre Reinforced 3D Printer

Technology: Continuous Fibre Reinforcement (CFR)
Build Volume: 320 x 132 x 154 mm
Z Layer Resolution: 100 μm – 200 μm
Materials Available: Onyx™, Precise PLA, Fibreglass
Workflow: Design – Reinforce – Print – Use
Cost Of Machine: Price on Request

Markforged Onyx One™

Markforged Desktop FFF 3D Printer designed by engineers, for engineers, printing tough but beautiful Onyx™ parts

Technology: Fused Filament Fabrication (FFF)
Build Volume: 320 x 132 x 154 mm
Z Layer Resolution: 100 μm – 200 μm
Materials Available: Onyx™
Workflow: Design – Print – Use
Cost Of Machine: Price on Request

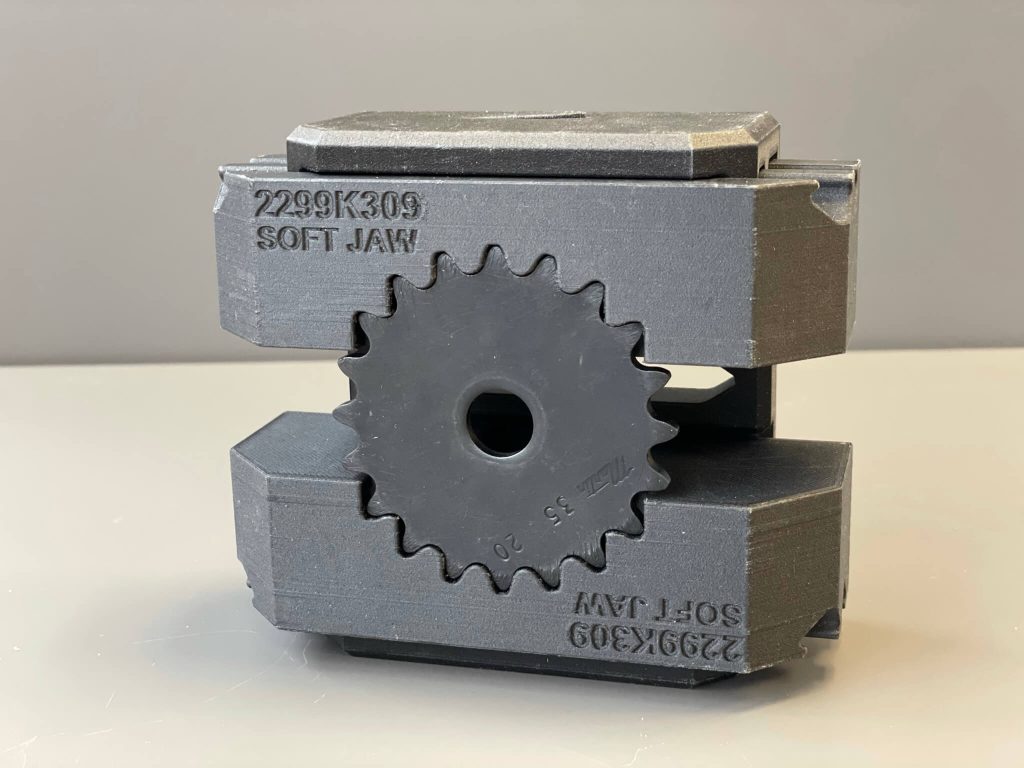

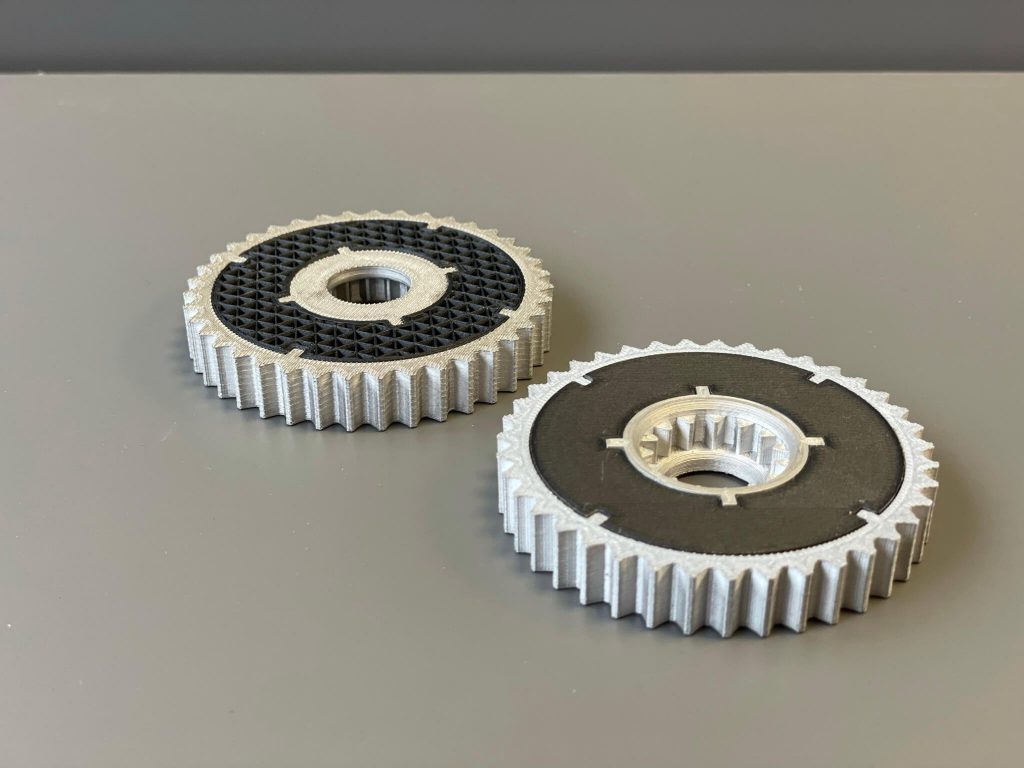

Printing Examples

The Markforged Range has a High-Quality, Reliable Printer For All Industries & Experience Levels

Speak To One Of Our Markforged Digital Forge Experts

Markforged

User Stories

Can you afford to wait to adopt Markforged additive manufacturing in your business? Find out how to save both time and money and transform your supply chain.

U.S. Army Utilising Markforged to Decrease Downtime

Improving Formula Student Engine Performance with 3D Printing

Transforming Wind Energy with Vestas and Markforged 3D Printers

3D Printing and the Armed Forces

How Labman Automation Cut Down Costs by 75% with 3D Printing

U.S. Army Utilising Markforged to Decrease Downtime

Improving Formula Student Engine Performance with 3D Printing

Transforming Wind Energy with Vestas and Markforged 3D Printers

3D Printing and the Armed Forces

How Labman Automation Cut Down Costs by 75% with 3D Printing

Markforged

The Digital Platform In Action (Videos)

Looking To See What’s Possible With Additive Manufacturing?
Play Video

How to 3D Print the right part

Play Video

The 3 Parts of an FFF printer

Play Video

Meet desktop series

Play Video

Markforged eiger software

Play Video

Can you break a 3D Printed part?

Play Video

3D Print Meal parts - overnight

Additive-X | Your Experienced Additive Manufacturing Partner

Largest Markforged UK Partner • Supporting customers across the UK and Eire • Working with a huge range of applications and industries

Our friendly team of 30 staff are on hand for everything you need pre and post sale, including efficient customer service and expert technical help.

Markforged

News & Blog

What’s New With the Markforged Digital Forge Platform?
Stay up to date with their latest printers, software and material advances

How Cannon Air Force Base 3D Prints Tools for Airmen in the Field

Industrial 3D Printing - Markforged

Smooth TPU added to Markforged Material Library

Markforged Revolutionises 3D Printing by Leveraging AI

Choosing the Best Markforged Materials for Manufacturing

How Cannon Air Force Base 3D Prints Tools for Airmen in the Field

Industrial 3D Printing - Markforged

Smooth TPU added to Markforged Material Library

Markforged Revolutionises 3D Printing by Leveraging AI

Choosing the Best Markforged Materials for Manufacturing

FAQ’S

Commonly asked questions about Markforged

A Markforged Mark Two costs approx £15995.00 ex vat (Jul-22)
Onyx is a Nylon PA6 blend with short strand chopped carbon fibre

Whatever you want! The strength of Markforged positions them for robust parts such as jigs, fixtures and work holdings but we have seen them used for camera casings, in automation cells and even high end audio equipment due to the excellent surface finish.

Markforged 3D prints when reinforced with continuous Carbon Fibre make parts with strength comparable to Aluminium.

Continuous fibre is positioned using Markforged’s Eiger™ slicing software

Currently you can print Stainless Steel 17-4ph, Tool Steels A2,D2, H13, Copper and Inconel 625 on the Markforged Metal X System (Jul-22).
